Up, Down, All-Around

Kasa Spot Pan Tilt, 24/7 Recording  |  EC71

Kasa Spot Pan Tilt, 24/7 Recording

Kasa Spot Pan Tilt, 24/7 Recording | EC71

Get the full picture of any space in your apartment, dorm or home with the Kasa Spot® Pan Tilt.

Features

  • Crystal Clear Video

    Sharp and clear 1080p Full HD video and night vision up to 30 ft make sure you never miss a thing.

  • Pan And Tilt

    With 360° rotational and 113° vertical views, the pan tilt camera is perfect for wide-open living spaces.

  • Motion Tracking

    When motion is detected, the Kasa Spot Pan Tilt will continue tracking the activity until it has stopped even if is out of the camera's standard view.

  • Patrol Mode

    Program your Pan Tilt camera to keep an eye on each region at intervals of your choosing.

  • Remote Live View

    Keep an eye on what’s important to you in real time from anywhere with the Kasa Smart app. Even stream live video to any Alexa or Google Assistant supported display.

  • Two-way Audio

    Use crisp two-way audio to communicate with nosy roommates, family, or even mischievous pets.

  • Instant Activity Alerts

    No need to check your Kasa Spot Pan Tilt throughout the day. Get automatic alerts when it detects motion or sound.

  • 24/7 Secure Local Recording

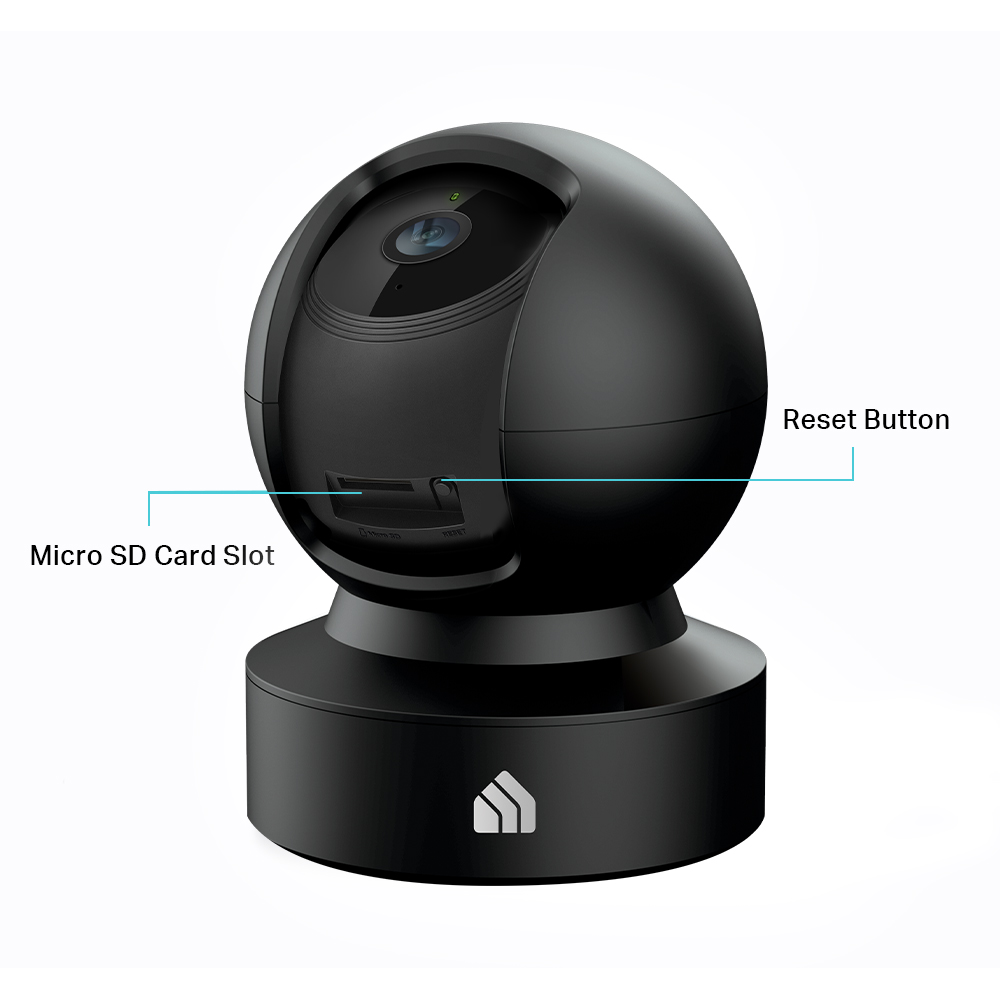

    Save your footage on a Micro SD card (up to 256 GB, sold separately) and playback with your Kasa Smart app. The camera will overwrite the oldest files when the microSD card memory is full.

Immersive Live View

Crystal clear 1080p high-definition video helps you see the nitty-gritty. Capture subtler sounds with high-quality audio.

Advanced Night Vision

Detect activity up to 30 feet away in the dark. Sharper and more accurate images make it easier to distinguish details and movement in the dark.

Coordinate with Light and Shadow

Adapts to different light conditions and provides high-quality images. Reduce overexposure and reveal both indoor and outdoor views well when looking towards windows.

Track the Movement

Tracks and follows the subject to keep it within the camera's field of view when motion activity is detected. Advanced algorithms ensure the tagging accuracy and sticking to movements.

Patrol Mode

Set at most four viewpoints to generate a patrol path. Program your camera to monitor each region automatically at custom speed and interval.

Activity That Matters

Control what alerts you receive by creating multiple custom activity zones, around areas that matter.

Two-Way Audio

Use crisp two-way audio to communicate with nosy roommates, family, or even mischievous pets.

Technical Specifications +

Activity Notifications
Input Trigger

Motion detection, sound detection

Output Notification

Push notification

Video
Video Compression

H.264

Frame Rate

15fps

Video Streaming

1080p

System
Regulatory Certification

RoHS, FCC, CE

System Requirements

iOS 10+, Android 5.0+

Environment
Operating Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-20°C~70°C (-4°F~158°F)

Operating Humidity

10%~90%RH non-condensing

 storage Humidity

5%~90%RH non-condensing

Hardware
Button

Reset button

Indicator Led

System LED

Adapter Input

100-240VAC, 50/60Hz, 0.2A

Adapter Output

5.0VDC, 1.0A

Product Dimensions (w x D x H)

3.2 x 3.2 x 4.4 in (82 x 82 x 112.6 mm)

Camera
Image Sensor

1/2.9“(Φ6.2)

Resolution

1080p Full HD 15 fps

Lens

F/NO: 2.4; Focal Length: 3.83 mm

Viewing Angle

360° horizontal view, 113° vertical view

Night Vision

850 nm IR LED up to 30 ft

Audio
Audio Communication

2-way audio

Audio Input & Output

Built-in microphone and speaker

Network
Storage Security

128 bit AES encryption with SSL/TLS

Wireless Rate

11 Mbps (802.11b) 54 Mbps (802.11g) 72.2 Mbps (802.11n)

Frequency

2.4 GHz

Wireless Security

WEP, WPA/WPA2-PSK

$component.cover().desktop().title()

What's Included

  • (1) Kasa Spot Pan Tilt
  • (1) Power Adapter
  • (1) 10 ft USB Cable
  • (2) Mounting Screws
  • (1) Mounting Plate
  • (1) Quick Start Guide
